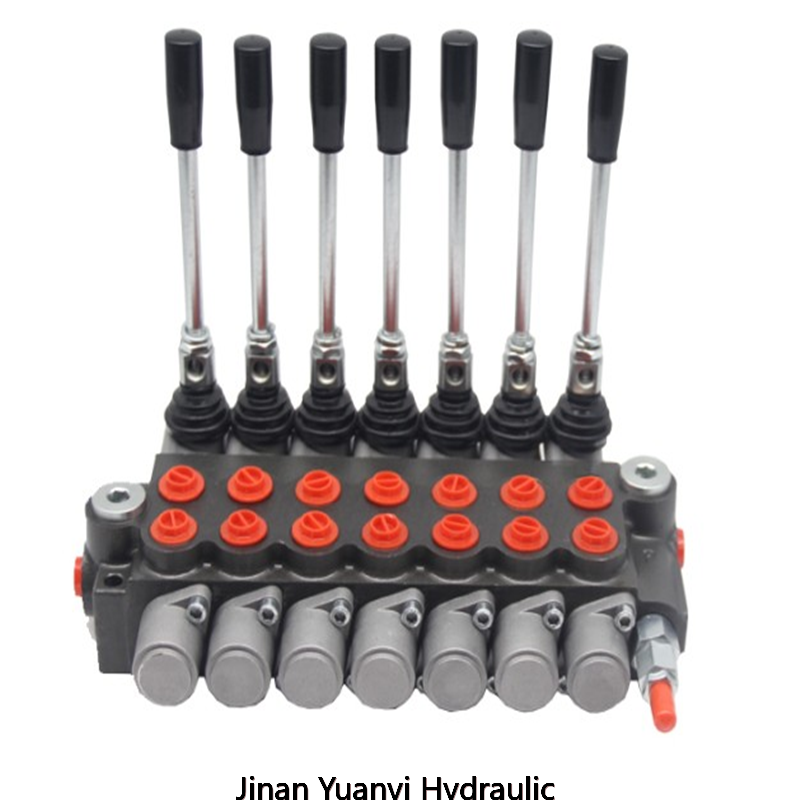

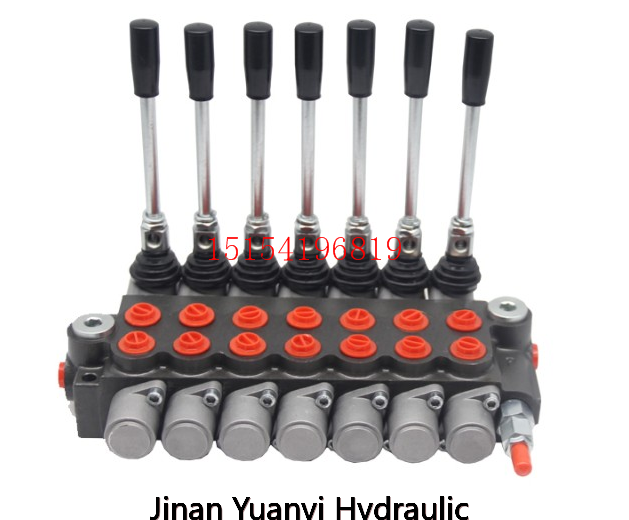

P40, P80 and P120 directional control Hydraulic valve, 2P40 2P80 Series Valve,1-7 spools Valve
P40, P80 and P120 directional control Hydraulic valve, 2P40 2P80 Series Valve
Pregunte ahora
Chatea ahora

Descripción del Producto

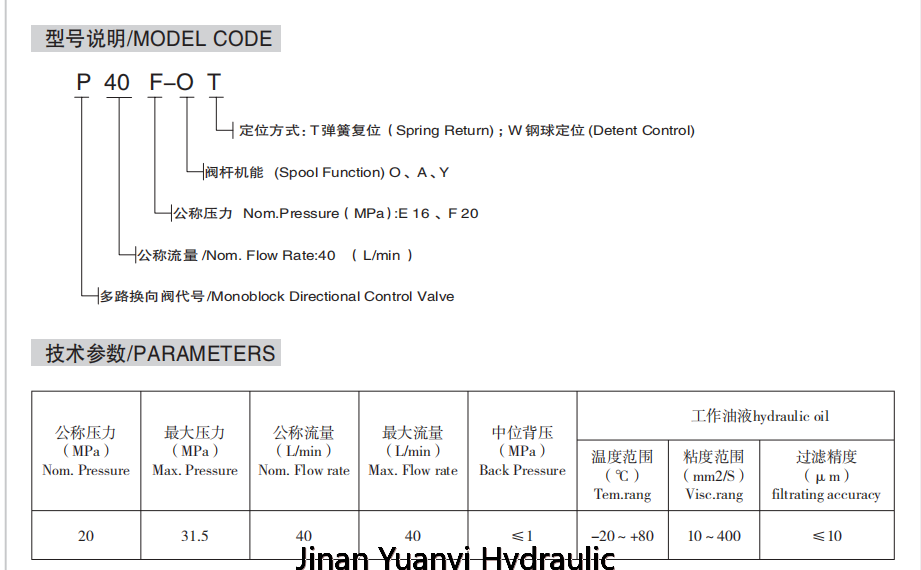

1 P40 series valves with middle-high pressure monoblock construction is developed based on Europe

technology.

2 Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be

returned.

3 Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working

pressure.

4 Oil way: Parallel circuit, power beyond option

5 Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.

6 Valve construction: monoblock construction, 1-7 levers.

7 Spool Function: O,Y, P,A.

8 Option: Hydraulic lock is available to be added on A and B port.

9 Available with manual, pneumatic control, electric and pneumatic control, hydraulic and electric

control and etc.

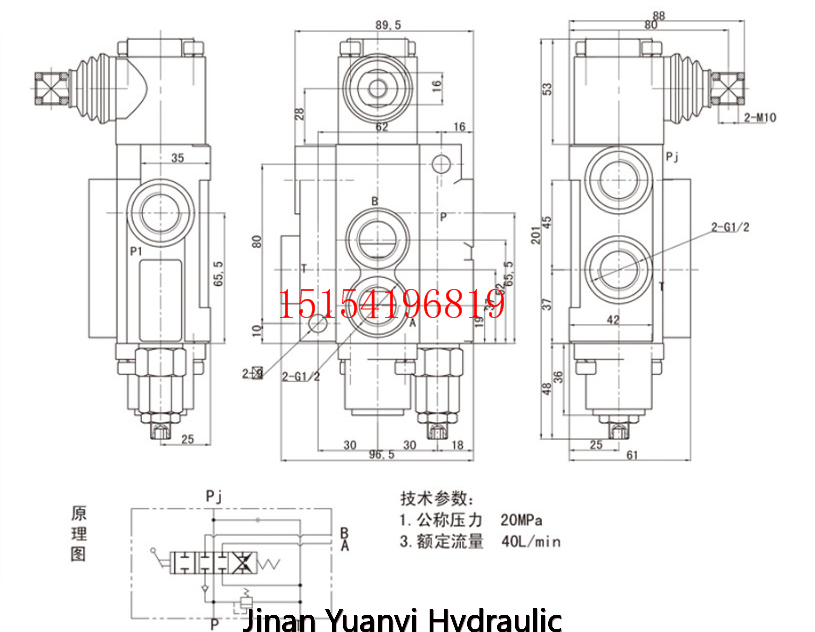

P40 1_副本.png
